Soil-Max Tile Plows: Precision Drainage Solutions & Equipment for Farms

Maximize your land’s productivity potential with Soil-Max Gold Digger and Stealth ZD Tile Plows, premier farm drainage equipment distributed across the globe by Farm X. Designed for optimal efficiency and robust durability, Soil-Max agricultural tile plows are the farmer’s choice for tackling farm water management challenges head-on, leading to improved soil health and significantly increased crop yields. As experienced Soil-Max distributors, Farm X provides expert guidance to ensure you select the right subsurface drainage solution for your specific farming operation and soil types.

Core Benefits

  • Proven Performance: Soil-Max tile plows are expertly engineered for tough soil conditions, offering reliable and consistent subsurface drainage installation performance, making them the best tile plow for field drainage projects.

  • User-Friendly Design: Built with the farmer and contractor in mind, featuring intuitive controls and straightforward operation for DIY drainage installation, minimizing the learning curve.

  • Durability & Longevity: Constructed with high-quality materials to withstand the rigorous demands of agricultural use, ensuring a long-term return on investment from this reliable farm machinery.

  • Increased Yield Potential: Proper farm drainage removes excess moisture, crucially improves soil aeration, and allows for deeper root development, directly contributing to healthier crops and quantifiable higher yields.

  • Compatibility: Seamlessly integrates with leading GPS grade control systems like Intellislope for unparalleled accuracy in tile placement.

Problems Solved

  • Tired of Waterlogged Fields & Lost Production? Soil-Max plows create effective drainage channels using standard drain tile, preventing standing water that damages crops and delays critical fieldwork.

  • Struggling with High Installation Costs? The user-friendly design empowers farmers to take control of their farm drainage projects, potentially reducing reliance and costs associated with external drainage contractors.

  • Need Reliable Farm Equipment You Can Count On? Avoid costly downtime with robust agricultural drainage equipment known for its strength and dependability season after season.

Tile Plow Stats

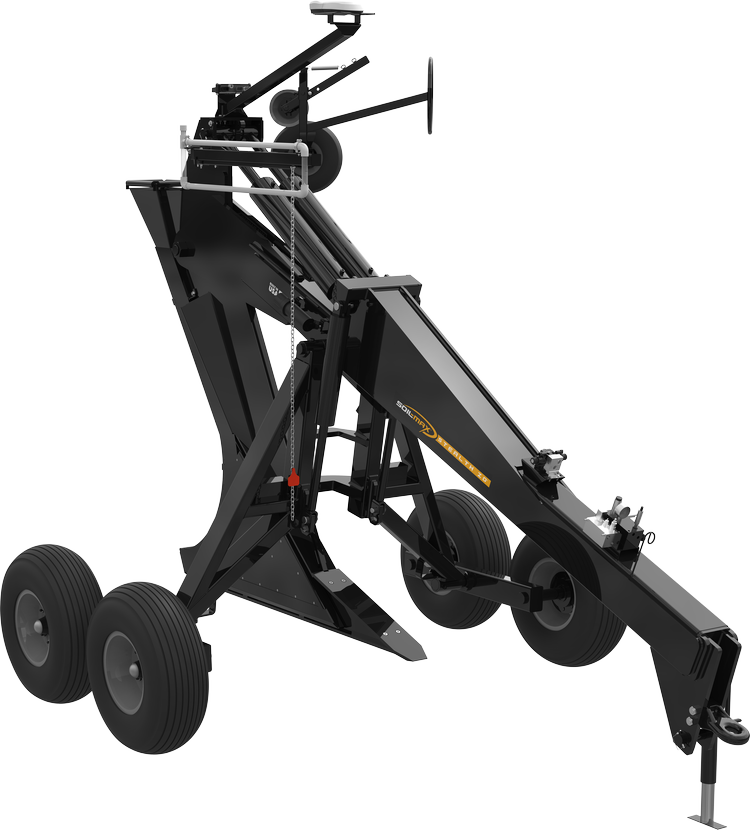

  • Pull Type

    • 2 meters (6.5 ft) maximum working depth.

    • Easy single-pin connection to hitch.

    • Needs a minimum of an 11 ton (25,000 lbs) tractor.

    • Installation of 100mm to 290mm (4” to 10”) drainage tile by quickly changing poly-sided boots and shear.

    • Single-point hydraulic hook-up to tractor.

    • A proprietary down pressure manifold puts only necessary pressure on the wing wheels.

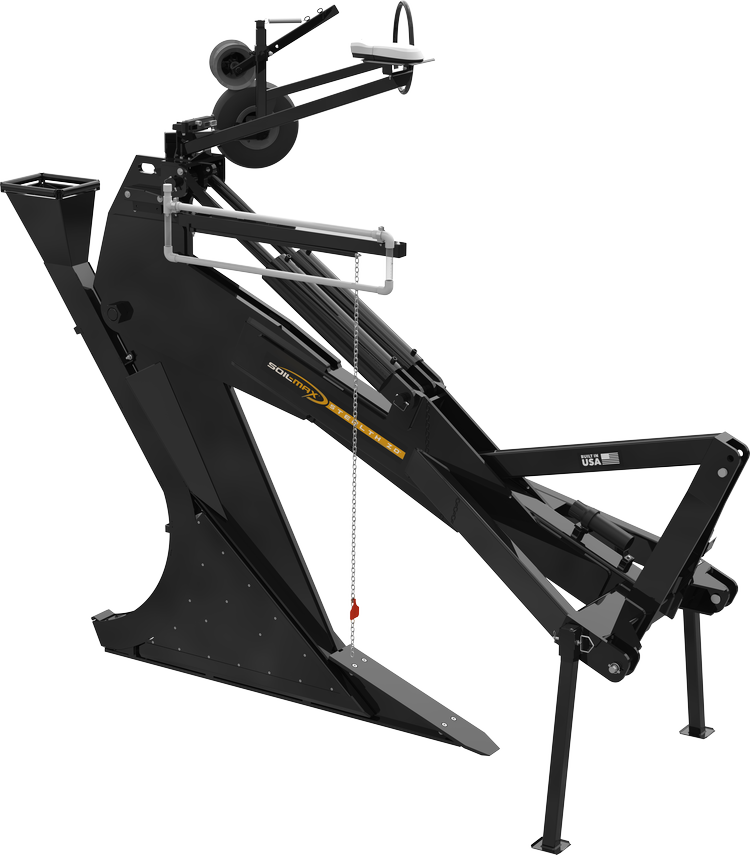

  • ZD1600 / 3-Point

    • 1.6 meters (5.5 ft) working depth.

    • 3-point linkage in Cat 3 or Cat 4 Narrow.

    • Needs a minimum of a 9 ton (20,000 lbs) tractor.

    • Installation of 65mm to 290mm (2” to 10”) drainage tile by quickly changing poly-sided boots and shear.

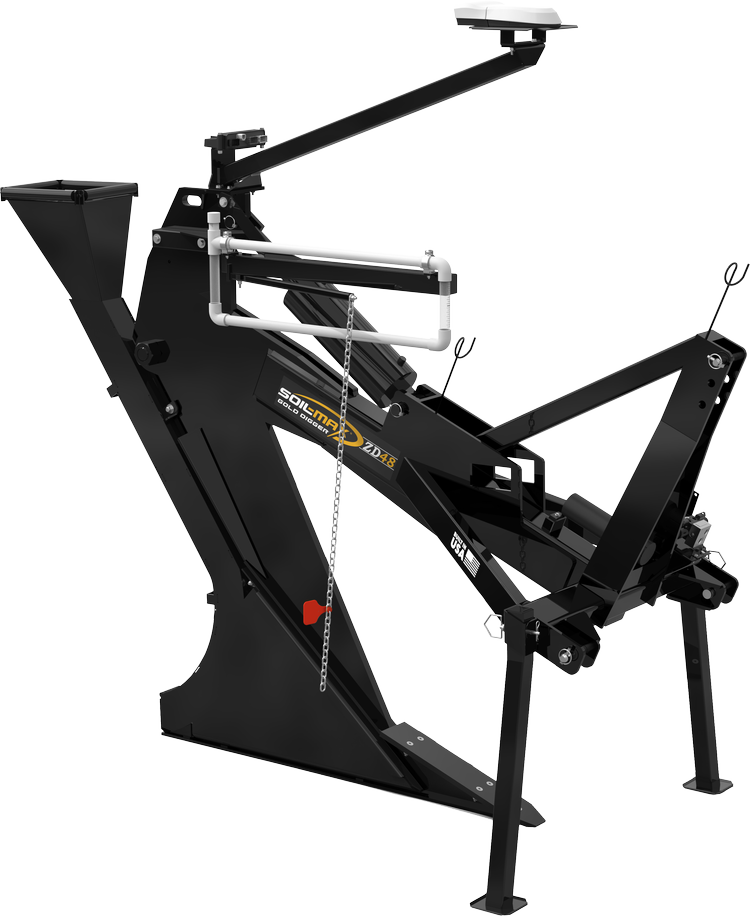

  • ZD1200 / ZD48

    • Needs a minimum of a 4.5 ton (10,000 lbs) tractor.

    • Thinner profile shank (easier pulling through soil)

    • 1.2 meters (4 ft) maximum working depth.

    • Install 65mm to 130mm (2” to 4”) drainage tile by quickly changing boots and shear.

    • Zero deflection produces better grade control with the drainage tile exit point directly below the hinge point of the tile plow.

    • Proprietary proportional valve to make crucial incremental adjustments to keep your tile plow on grade.

    • Poly sides shed dirt and make for an easier pull.

Beyond the Plow: Farm X offers Expert Guidance & Support

When you buy a Soil-Max tile plow through Farm X, your trusted Soil-Max dealer, you’re getting more than just equipment. You receive practical guidance from our team, drawing on our extensive experience distributing and supporting agricultural technology and precision farming tools. We help you understand the features, integration possibilities (like pairing with Intellislope for automated tile plow control), and basic operational requirements for successful farmer drainage installation.

Ready to take control of your farm’s drainage and boost productivity? Contact Farm X today to discuss Soil-Max Tile Plow models and find the perfect fit for your agricultural operation.
